JBL Factory Woofer Control 23

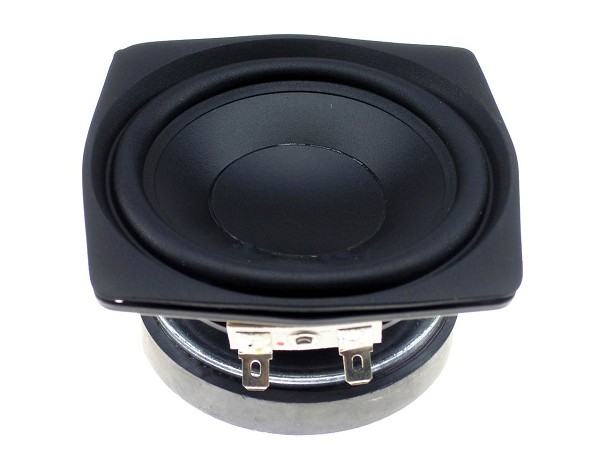

3.5" JBL Factory Control 23 Replacement Woofer, 8 Ohms, 124-03000-00

1 Review(s)

Write a Review

Your Price: $69.00

List Price:$81.18

You Save:$12.18(15%)

3.5" JBL Factory Control 23 Replacement Woofer, 8 Ohms, 124-03000-00

Questions about this item? Ask here.

Chat With Us

Part Number: JBL-124-03000-00

Availability: 0 Out of Stock

Details
Customer Reviews
Q & A
Fits Models

JBL Control 23 Factory Speaker Woofer Part # 124-13000-00

This is a complete brand new JBL, Control 23 woofer
Voice coil: 7/8" (23mm)
Diameter: 3-3/8" (86mm) 4-1/4" (108mm) diagonally
Impedance: 8 ohm, DCR: 6.5 ohm
Poly cone with rubber edge

Q: A. what size is it? B. what is its frequency range?

Asked by: tim - 7/20/2016

A: This is a 4" woofer made for the JBL Control 23. Response: 85-6000 Hz.

Was this answer helpful? 4 of 4 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (7/21/2016)

Q: Hi, I have a Kustom powered monitor KPM4 with a blown 4" woofer. This JBL looks like it could work as a replacement. Could you tell me the depth of the JBL? Thanks!

Asked by: Bob - 1/2/2017

A: This unit is actually a 3.5" driver. Depth is 1.75". For a true 4" replacement, you might want to check out the W-204 series.

Was this answer helpful? 2 of 3 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (1/2/2017)

Q: What is the dimension from hole to hole in mm side to side and diagonally?

Asked by: Ray - 10/8/2018

A: Side to side: 68mm
Diagonally: 98mm

Was this answer helpful? 2 of 2 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (10/8/2018)

Q: Will this replace the factory speaker in a 2006 Avalon, JBL system without nav?

Asked by: David - 8/29/2015

A: Sorry, no. This is for the Control 23 model only. For your model, we recommend removal and sending it to us for repair. Thanks!

Was this answer helpful? 1 of 2 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (8/30/2015)

Q: What is the dimension in mm from side to side not corner of this speaker?

Asked by: anthony - 5/14/2018

A: Driver dimensions: Side to side: 67mm. Diaganolly: 98mm. Hole diameter: 4.75mm

Was this answer helpful? 0 of 0 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (5/14/2018)

Q: I have a jbl sb 200 will this fit?

Asked by: John - 5/9/2019

A: This woofer will only fit the Control 23 to our knowledge. Thanks!

Was this answer helpful? 0 of 0 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (5/9/2019)

Q: What is the RMS and Max watts

Asked by: jm - 12/6/2021

A: 20 watts RMS, 40 watts max

Was this answer helpful? 0 of 0 Customer(s) found this Answer helpful.

Answer provided by: Simply Speakers (12/6/2021)

Questions about this item? Ask here.

UPC: 700621985310
